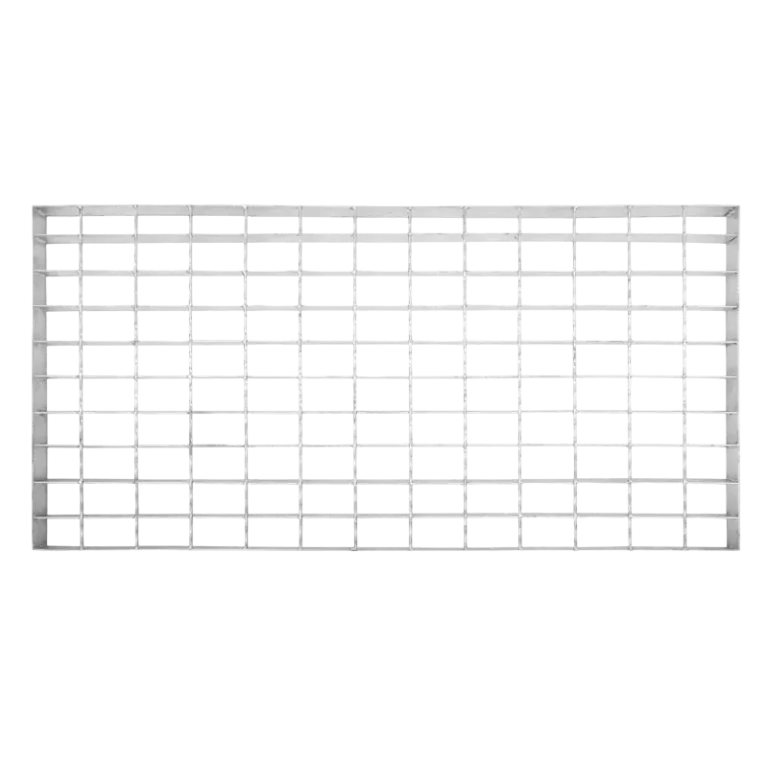

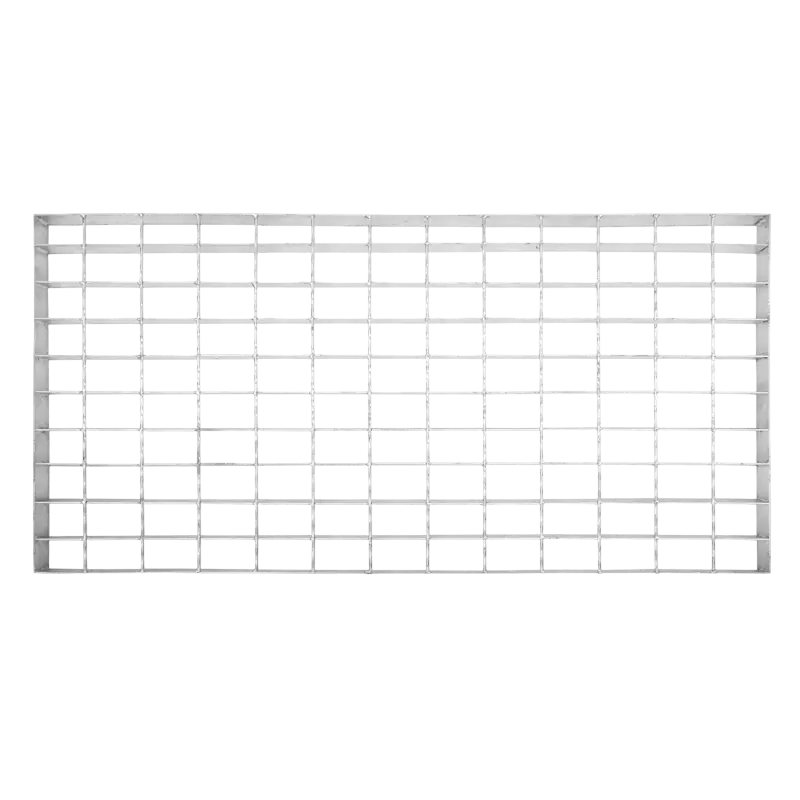

Steel Grate for Heavy Duty Drum Spill Pallet

Hot-Dip Galvanized Steel Grate
BV Load-Tested Heavy-Duty Support
Heat-Resistant for Harsh Environments

View More Details

High Thermal Stability Design
Maintains integrity above 60°C conditions.
Heavy-duty Pallet Compatibility
Fits UP-1205~1208, UP-1403, UP-1404.

Get a Quote

Steel Grating for Extreme Drum Loads

chemical-compatibility-test-strip-for-spill-pallet

Galvanized Steel Strength & Heat Resistance

The UPQUARK Steel Grate for Heavy Duty Drum Spill Pallet delivers unmatched strength, thermal stability, and chemical resistance for the most demanding industrial containment scenarios. Crafted from hot-dip galvanized steel, it offers exceptional durability against abrasion, corrosion, and weather exposure, even in environments exceeding 60°C.

Certified Load Performance & Leak Visibility

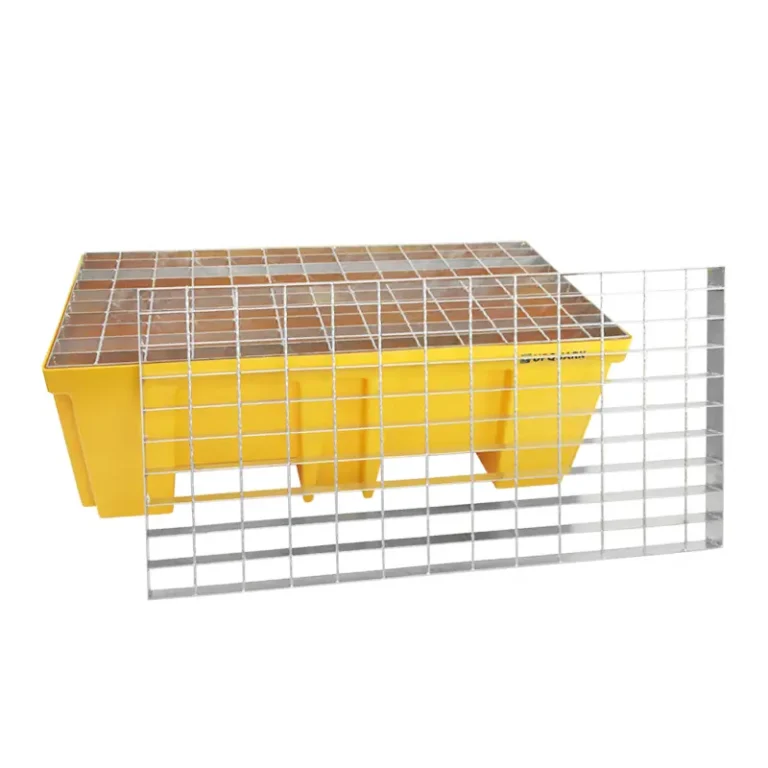

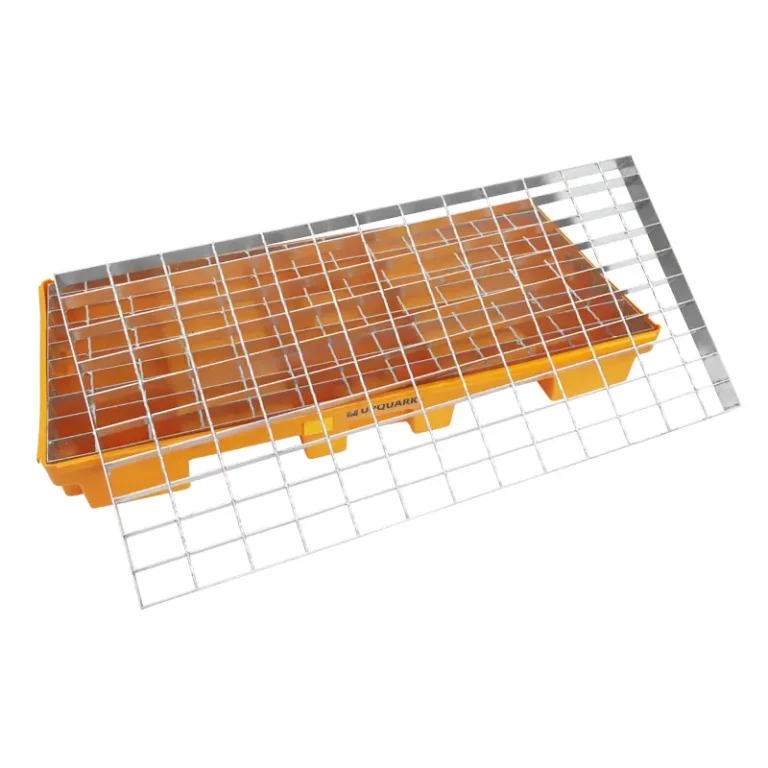

With a 65mm structural depth, it’s engineered to handle heavy, irregularly shaped containers, especially those with concentrated load points. When integrated with bases like UP-1205, UP-1206, UP-1207, UP-1208, UP-1403, and UP-1404, the full pallet system has passed Bureau Veritas (BV) certified load testing—ensuring structural integrity and long-term safety. The open mesh layout improves visibility for leak detection, while the silver-gray grate contrasting with yellow or orange bases enhances hazard zone awareness.

Hot-Dip Galvanized Steel

High resistance to wear, chemicals, and weather.

Reinforced Load Height

Uneven Load Optimization

Optimized for uneven drum bases and point-loaded containers.

High-Temperature Resistance

Withstands >60°C environments without structural deformation.

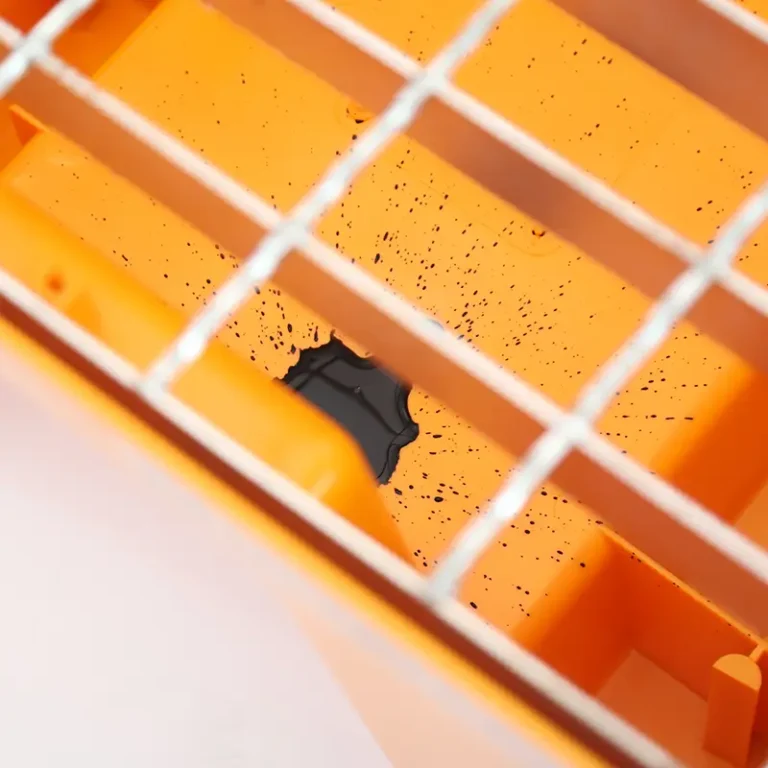

Open Mesh Visibility

Compliance

Ideal Applications

Flammable and corrosive chemical drum containment
Outdoor or high-temperature facilities
Sites with heavy, uneven, or specialty containers
Petrochemical, aerospace, manufacturing industries
Long-term storage requiring thermal resilience and high load support

Benefits

Complies with structural safety under EPA 40 CFR 264.175, SPCC, and related containment standards
Certified by Bureau Veritas for compression strength
Steel construction minimizes fire risk and heat deformation
Color-contrasted for enhanced visual hazard awareness
Supports flammable, corrosive, and high-density liquid storage environments

Usage Tips

Ensure full contact between grate and base support
Regularly inspect for corrosion after extended exposure to harsh liquids
Not recommended for use on incompatible base models
Clean mesh openings to maintain spill visibility
Use in compliance with facility's hazardous liquid SOPs

Tech Specs

Brand	UPQUARK
Model	UP-9103
Dimensions L x W x H cm (in.)	126 x 62 x 6.5 (50 x 24 x 2.6")
Color	Silver
Material	Hot-dip Galvanized Steel
Weight kg(lb)	22 (49)
Style	Spill Pallet Accessories
