L-Bracket Spill Berm

Name: L-Bracket Spill Berm
Rating: 4.1 (11 reviews)

Ideal for equipment & drums, vehicles, drive-in access
Sump capacity up to 21,402 liters
Available customized

View More Details

Super Large Capacity
This spill containment pallet has a sump capacity of 1600 liters
Strong & Durable
Proven in 6-month outdoor simulated load capacity test (4500 kg)

Get a Quote

Secure and Durable Spill Containment

chemical-compatibility-test-strip-for-spill-pallet

Durable L-Bracket Berm for Long-Term Use

The L-Bracket Spill Berm is a robust and highly durable secondary containment solution engineered for long-term, semi-permanent deployment.

Rigid Sidewalls for Continuous Containment

Designed with rigid L-Brackets to hold the sidewalls firmly upright, it is ideal for locations that require continuous containment of hazardous materials, chemical storage, or heavy equipment maintenance.

Rigid Wall Support

Reinforced with heavy-duty L-Brackets that maintain wall structure under pressure.

Heavy-Duty Construction

Made with high-strength, chemical-resistant materials suitable for demanding industrial environments.

Customizable Sizes

Available in standard and custom dimensions to fit various containment requirements.

Easy to Deploy and Maintain

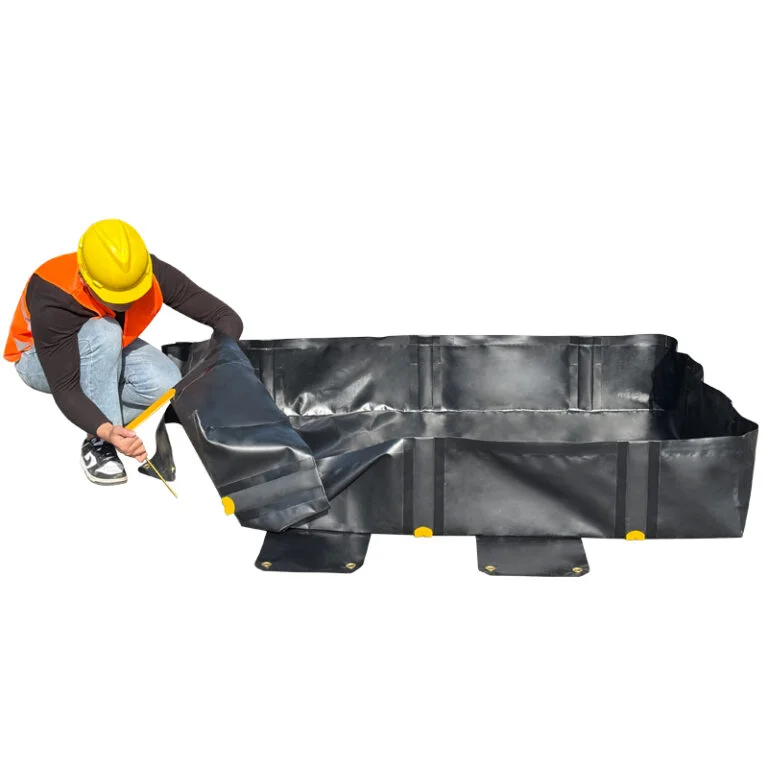

Simple bracket-insertion system allows for fast setup and disassembly.

High Chemical Compatibility

Resistant to oils, fuels, acids, solvents, and a wide range of other hazardous substances.

Compliance

Applications

Industrial and manufacturing plants
Oil & gas operations
Chemical storage and transfer stations
Transportation & logistics hubs
Emergency spill containment

Benefits

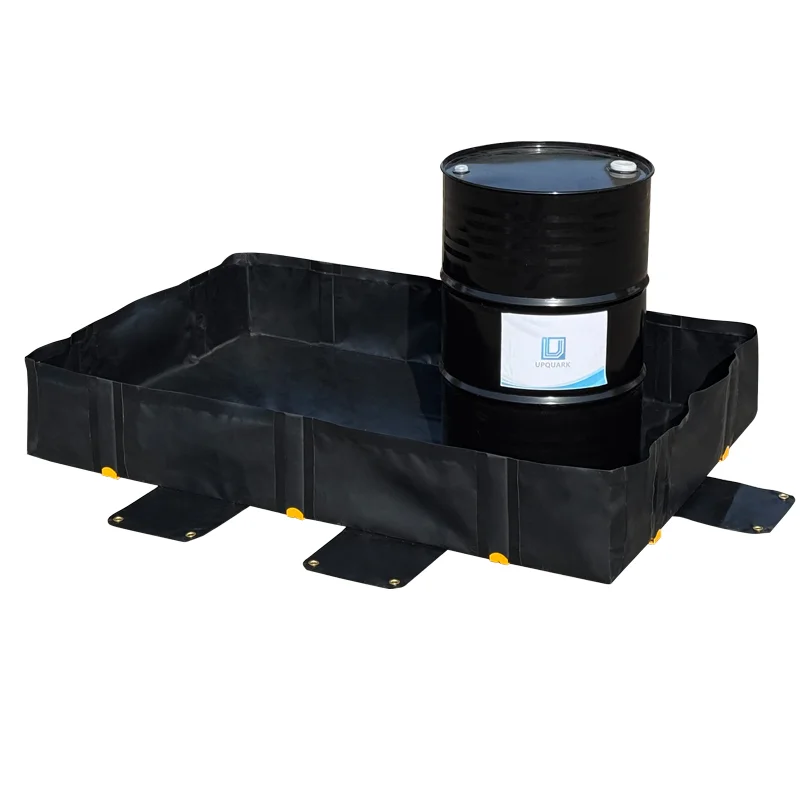

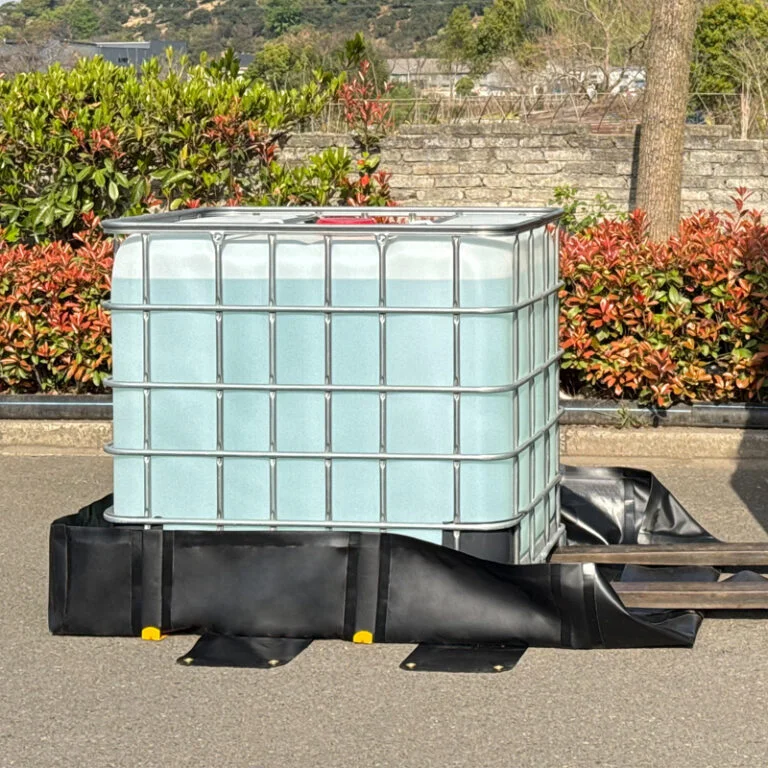

Container Storage – Suited for 55-gallon drums, IBC totes, and other container sizes.
Vehicle & Equipment Maintenance – Perfect for capturing leaks and drips during repairs and servicing of small to large vehicles.
Temporary or Semi-Permanent Installations – Ideal for areas needing long-term containment with occasional disassembly.

Usage Guidelines

Always install on a clean, level surface to ensure stability and performance.
Insert brackets securely into all slots before use.
Anchor the berm using ground grommets in high-wind or high-traffic areas.
Inspect material compatibility before placing containers or equipment inside.
Clean and dry before storage to maximize service life.

Tech Specs

Category	Model	Dimension（foot）	Dimension（m）	Weight（pound）	Weight（kg）	Spill Capacity（gal)	Spill Capacity（liter)
UPQUARK L-Bracket Spill Berm	AL-1212	4x4x1	1.2x1.2x0.3	16	7.3	119	450
UPQUARK L-Bracket Spill Berm	AL-1218	4x6x1	1.2x1.8x0.3	18	8.1	179	677
UPQUARK L-Bracket Spill Berm	AL-1515	5x5x1	1.5x1.5x0.3	20	9	187	707
UPQUARK L-Bracket Spill Berm	AL-1824	6x8x1	1.8x2.4x0.3	22	10	359	1358
UPQUARK L-Bracket Spill Berm	AL-2430	8x10x1	2.4x3x0.3	25	11	598	2263
UPQUARK L-Bracket Spill Berm	AL-3030	10x10x1	3x3x0.3	39	17	748	2831
UPQUARK L-Bracket Spill Berm	AL-3061	10x20x1	3x6.1x0.3	98	44	1496	5662
UPQUARK L-Bracket Spill Berm	AL-3091	10x30x1	3x9.1x0.3	105	47	2244	8494
UPQUARK L-Bracket Spill Berm	AL-3012	10x40x1	3x12.2x0.3	120	54	2992	11325
UPQUARK L-Bracket Spill Berm	AL-3015	10x50x1	3x15.2x0.3	134	60	3740	14157
UPQUARK L-Bracket Spill Berm	AL-3018	10x60x1	3x18.3x0.3	192	87	4488	16988
UPQUARK L-Bracket Spill Berm	AL-3636	12x12x1	3.6x3.6x0.3	77	35	1077	4077
UPQUARK L-Bracket Spill Berm	AL-3661	12x20x1	3.6x6.1x0.3	100	45	1795	6795
UPQUARK L-Bracket Spill Berm	AL-3679	12x26x1	3.6x7.9x0.3	105	47	2334	8835
UPQUARK L-Bracket Spill Berm	AL-3691	12x30x1	3.6x9.1x0.3	115	52	2692	10190
UPQUARK L-Bracket Spill Berm	AL-3611	12x36x1	3.6x11x0.3	140	63	3231	12230
UPQUARK L-Bracket Spill Berm	AL-3615	12x50x1	3.6x15.2x0.3	175	79	4488	16989
UPQUARK L-Bracket Spill Berm	AL-4212	14x40x1	4.2x12.2x0.3	170	77	4189	15857
UPQUARK L-Bracket Spill Berm	AL-4515	15x50x1	4.5x15.2x0.3	240	108	5654	21402
